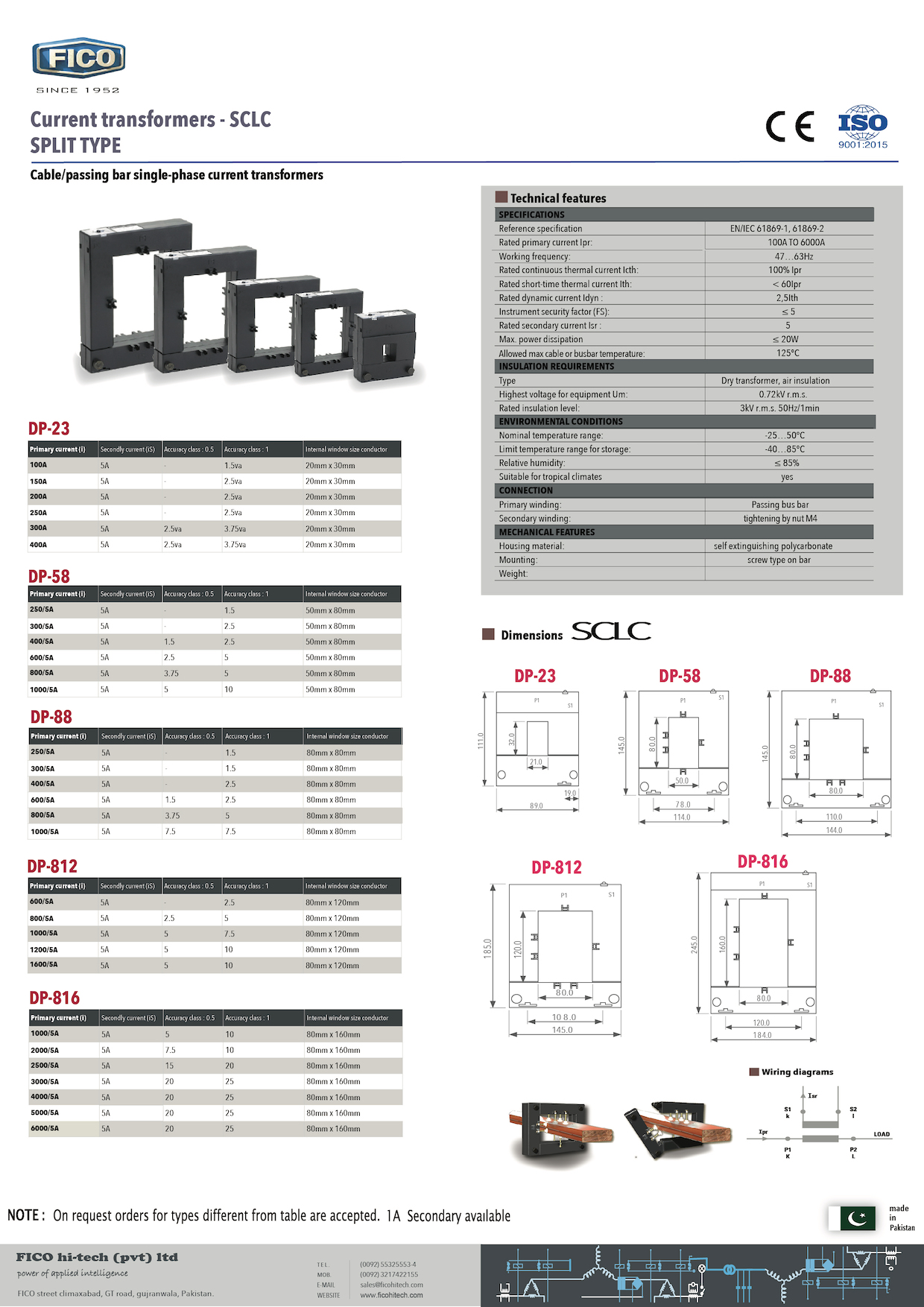

The Spilt Core (SC) Series Current Transformer has been specially designed to facilitate their installation in newor already existing net works. They may be installed without opening any cable or bus-bar circuit. The connection of conventional CTs usually requires the interruption of the primary side current to pass cables or bus-bar through the transformer core to connect such cables to the primary terminals.
  1. Two built in fixing methods: Panel/Bus-bar
  2. Very easy to install
  3. Wide inner window, allowing clamping of big cables or bus-bars
  4. Wide range of size to accommodate all the existing installation
  5. Primary current from 5A to 5000A
  1. Rated Frequency     50/60Hz
  2. Rated Test Voltage  3kv AC. (1 min)
  3. Rated short-time thermal current (lth)    60ln
  4. Rated
  5. dynamic current (ldyn) 2.5lth
  6. Rated voltage (Um) 0.72kv AC.
  7. Continuous overload (ld) 1.2ln
  8. Operating temperature -10 C ~ 50 C
  9. Housing self-extinguishing class VO
  10. Safety factory FS 5
  11. Secondary current 5A/1A
  • IEC 60044-1 GB1208-2006
